Wilwood Brake Conversions for Classic Japanese Sports Cars

TL;DR

• Wilwood brake kits transform the braking performance of classic Japanese sports cars like the Datsun 240Z and Toyota AE86.


• Benefits include shorter stopping distances, better heat management, and reduced unsprung weight for improved ride quality.


• Choosing the right kit means factoring in wheel clearance, brake bias, and intended use to get the most out of your upgrade.

Why brakes matter when building a classic Japanese icon

Brakes are the unsung heroes of any build. Whether you’re nursing a tired Toyota AE86 back to life or giving your Datsun 240Z a restomod makeover, chances are you’ve already thought about upping the horsepower or lowering the ride height. But are the stock brakes up to the challenge? In their How Brake Upgrades Work feature, HowStuffWorks notes that high‑quality brake parts last longer, decrease stopping distance and perform better under extreme conditions, which ultimately improves your vehicle’s safety auto.howstuffworks.com. The same article also points out that performance brake upgrades are designed to dissipate heat build‑up more efficiently than standard equipment brakes. Simply put, modern brake upgrades not only look great behind your polished Watanabes but also make your classic safer and more usable.

Why choose Wilwood?

Lightweight power that keeps unsprung weight in check

Unsprung mass is everything that moves with the wheel – wheels, tires, brake rotors and calipers. Reducing it improves ride quality and handling, because the suspension doesn’t have to work as hard to control the mass. CarBuzz explains that using lightweight components such as aluminum calipers and carbon‑ceramic rotors can slash unsprung weight; their article highlights that aluminum calipers are much lighter than mass‑produced cast‑iron items, and that carbon‑ceramic discs weigh less than standard steel rotors. Wilwood’s forged aluminium calipers are among the lightest on the market. That translates into sharper turn‑in, better bump compliance and a brake pedal that feels alive rather than wooden.

Kits engineered to work together

A brake system is more than just rotors and pads. R1 Concepts, a performance brake manufacturer, notes that a brake kit contains rotors, pads and hardware designed to work together, ensuring perfect compatibility. They add that kits from trusted brands provide enhanced stopping power, heat dissipation and durability. Wilwood follows the same ethos: their conversion kits are built as a package, pairing multi‑piston calipers with vented rotors, braided lines and the correct brackets so everything bolts on without guessing. This kind of integration is why motorsport teams and show‑car builders alike swear by the brand.

Better cooling and fade resistance

Big brake conversions aren’t only about size. Wilwood offers rotors drilled, slotted or both. R1 Concepts’ rotor guide notes that drilled rotors have holes that dissipate heat and water, slotted rotors have grooves that improve pad bite and braking performance, and drilled‑and‑slotted rotors combine both benefits, providing superior heat dissipation and stopping power. These features help prevent the “brake fade” that enthusiasts experience on steep mountain roads or repeated high‑speed stops auto.howstuffworks.com. With a Wilwood kit, your classic Supra or RX‑7 can handle back‑to‑back spirited runs without the pedal going mushy.

Popular Wilwood conversions for beloved classics

Note: Availability varies by region; always verify fitment for your specific chassis. These examples show what’s available in 2025 and the typical specs.

Datsun 240Z/260Z/280Z – Stage 2 front kit

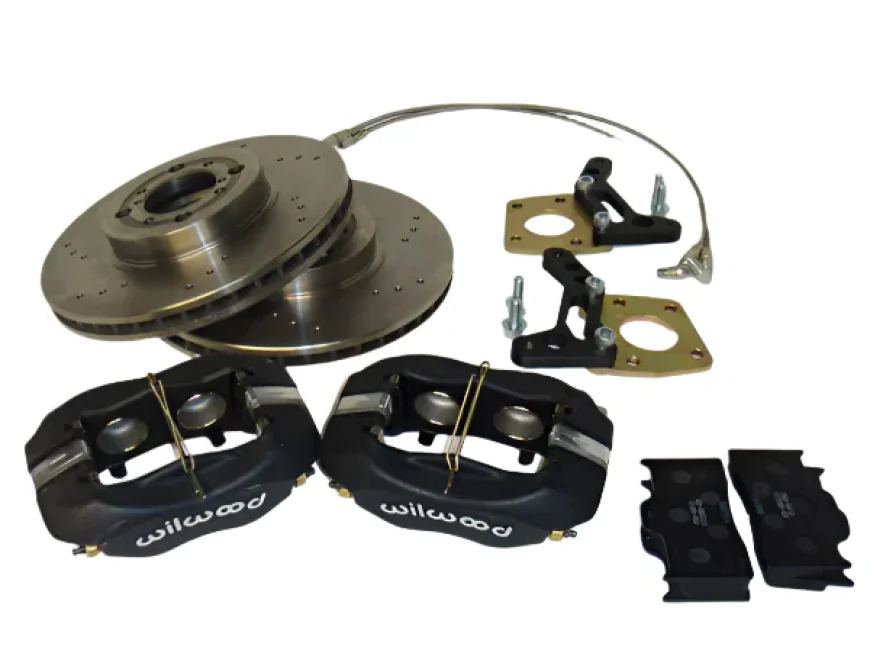

The early S30 Z chassis came with solid front discs and rear drums – adequate for a 140 hp 240Z but marginal once you add a stroker L28 or turbo swap. Wilwood’s Stage 2 front kit replaces the single‑piston iron calipers with forged aluminium four‑piston Dynalite calipers and mounts them to 12‑inch vented rotors. The rotors are often cross‑drilled and slotted for maximum cooling, and the kit includes billet aluminium hats, brackets and braided stainless lines. Reduced unsprung weight (around 5 lb per corner), better heat management and a firm pedal transform how the car stops.

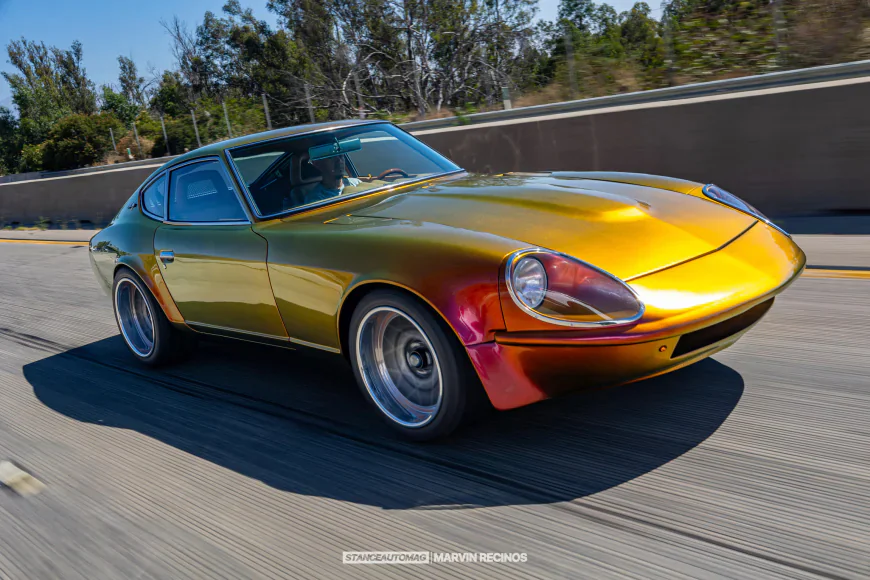

Check out this Datsun 240z: Restored 1970 Datsun 240Z Series 1 with L28 & Mikuni Build right here on Stance Auto which has Wilwood Braking system

Toyota AE86 Corolla

The AE86’s factory 234 mm solid rotors and tiny calipers struggle to keep up with modern power upgrades. Wilwood offers a bolt‑on kit using Dynapro radial‑mount 4‑piston calipers with 11.75 in (≈300 mm) two‑piece rotors. They fit behind many 15‑inch wheels and dramatically increase thermal capacity. Combined with the kit’s high‑friction pads, your Hachiroku can brake much later into corners without locking up or fading. Owners running turbo 4AGs or beams swaps report pedal feel comparable to modern sports cars.

Mazda RX‑7 (SA22C/FB) and early Miata

Early rotary and Miata models are famed for nimble handling but share a common flaw: undersized brakes. Wilwood’s RX‑7/Miata kits use six‑piston Dynapro calipers mated to 11 to 12‑inch vented rotors, trimmed to fit inside the stock spindles. The larger piston area gives more clamping force, while the rotor‑hat design sheds heat quickly. Combined with braided lines and a proportioning valve, the upgrade matches the engine’s zingy character with serious stopping power.

This 1983 Mazda RX-7 GSL: A JDM Racing Legend has a Wilwood conversion for stopping power.

Nissan S‑chassis (S13/S14) – 12.88 in big brake kit

Drifters love the S13/S14 for its balance, yet stock brakes quickly overheat during tandem sessions. Wilwood’s kit features 12.88 in rotors and lightweight four‑piston calipers that bolt to stock knuckles. The increased rotor diameter gives the pads more leverage over the axle (improving braking torque), while drilled and slotted faces expel heat and gases. Many S‑chassis owners pair this with a Wilwood rear disc conversion to maintain brake bias and take advantage of the integrated parking brake.

Things to consider before diving in

• Wheel clearance and fitment: Big brake kits need space; most Wilwood setups require 15‑inch wheels or larger. Always check the manufacturer’s fitment template.


• Brake bias and proportioning: Increasing front brake torque without addressing the rear can lead to premature front lock‑up. Many kits retain the stock master cylinder, but serious setups may require an adjustable proportioning valve or larger master cylinder. If unsure, consult a professional.


• Professional installation: Even though Wilwood kits are designed as bolt‑on upgrades, R1 Concepts recommends having a qualified mechanic install brake kits because proper installation and bleeding are critical for safety.


• Daily driving vs. track use: For daily drivers, blank or lightly slotted rotors with ceramic pads provide quiet operation and low dust. For track cars, drilled and slotted rotors with semi‑metallic or carbon‑ceramic pads deliver the thermal capacity needed for repeated hard stops. R1 Concepts suggests that high‑performance kits with big rotors and calipers significantly improve braking power and heat management.


Final thoughts – building the complete classic

In the end, the joy of owning a classic Japanese sports car lies in the balance of performance, reliability and style. Upgrading to a Wilwood brake conversion is about more than just flashy callipers – it’s an investment in safety, confidence and handling. If the rest of your build can run circles around modern cars, why leave stopping to 1970s technology? Stance Auto Magazine often showcases builds where thoughtful brake upgrades complement power mods and suspension work. With Wilwood and other quality kits, your beloved Z, AE86 or RX‑7 can stop as hard as it accelerates, giving you the confidence to enjoy every mile.

Further / Related Articles

• How Brake Upgrades Work – HowStuffWorks [https://auto.howstuffworks.com/auto-parts/brakes/brake-parts/brake-upgrades.htm]

• Wilwood Engineering Official Site [https://www.wilwood.com/]

• California Datsun – Stage 2 Wilwood Brake Kit for Datsun 240Z/260Z/280Z [https://www.californiadatsun.com/products/front-wilwood-brake-kit-stage-2-240z-260z-280z]

• Why Choosing the Right Brake Kit Matters – R1 Concepts [https://www.r1concepts.com/blog/why-choosing-the-right-brake-kit-matters/]

• Drilled vs Slotted Brake Rotors – R1 Concepts [https://www.r1concepts.com/blog/drilled-vs-slotted-brake-rotors-which-are-right-for-you/]

• When Performance Brakes Make Sense – The Brake Report [https://thebrakereport.com/performance-brakes-make-sense/]
