Complete Guide to Engine Swaps: Planning and Costs

The Ultimate Modification: Engine Swaps

Engine swaps are the pinnacle of car modification. Dropping a completely different engine into your chassis transforms everything — power delivery, character, sound, and driving experience. A Honda Civic with a K-series swap becomes a VTEC screamer. A BMW E36 with an LS V8 becomes a tire-shredding monster. A Nissan S13 with a 2JZ becomes a 1,000bhp-capable drift weapon.

But engine swaps are also the most complex, expensive, and challenging modifications you can undertake. They require fabrication skills, extensive mechanical knowledge, electrical expertise, and realistic budgets. A "simple" swap still costs £5,000-10,000 minimum. Complex swaps easily hit £20,000-30,000. And that's before considering the hundreds of hours of labor involved.

This complete guide walks through everything you need to plan and execute a successful engine swap: choosing the right engine and chassis combination, understanding costs at every stage, legal requirements, fabrication needs, wiring complexity, and common pitfalls that derail projects. Whether you're considering your first swap or planning something ambitious, this is your roadmap.

For detailed build costs on specific platforms, see our SR20DET 400bhp build guide and turbo conversion cost breakdown.

What You'll Learn:

• Popular engine swap combinations
• Complete cost breakdowns
• Legal requirements and SVA/IVA
• Fabrication and mounting
• Wiring and ECU solutions
• Transmission compatibility
• Common problems and solutions

Why Engine Swap?

Valid Reasons

More power: Stock engine maxed out, swap brings big power increase Reliability: Modern engine replacing worn/problematic original Character: Want different power delivery (V8 torque vs turbo 4-cylinder) Availability: Parts for original engine scarce/expensive Fun/Challenge: The build itself is the goal

Bad Reasons

Cheaper than fixing stock engine: It's almost never cheaper Everyone else did it: Do it because YOU want to Impulse decision: Swaps require commitment and planning

Popular Engine Swap Combinations

LS V8 Swaps (Chevrolet LS1/LS2/LS3)

Why LS engines dominate:

• Compact size (fits surprisingly well)
• Lightweight (aluminum block)
• Reliable (truck engine DNA)
• Cheap power (400-500bhp achievable)
• Huge aftermarket support

Popular LS chassis:

BMW E36/E46:

• Cost: £8,000-15,000
• Result: 350-450bhp, massive torque
• Best kits: Sikky, Garagistic

Mazda MX-5:

• Cost: £10,000-18,000
• Result: 350-400bhp in 1,100kg car (insane)
• Best kits: V8 Roadsters, Flyin' Miata

Nissan S13/S14:

• Cost: £8,000-14,000
• Result: Ultimate drift machine
• Best kits: Sikky, Vorshlag

Total LS swap cost: £8,000-18,000 depending on chassis and kit quality

For more LS swap inspiration, check out our JDM and modified car magazines on Amazon featuring real-world engine swap builds.

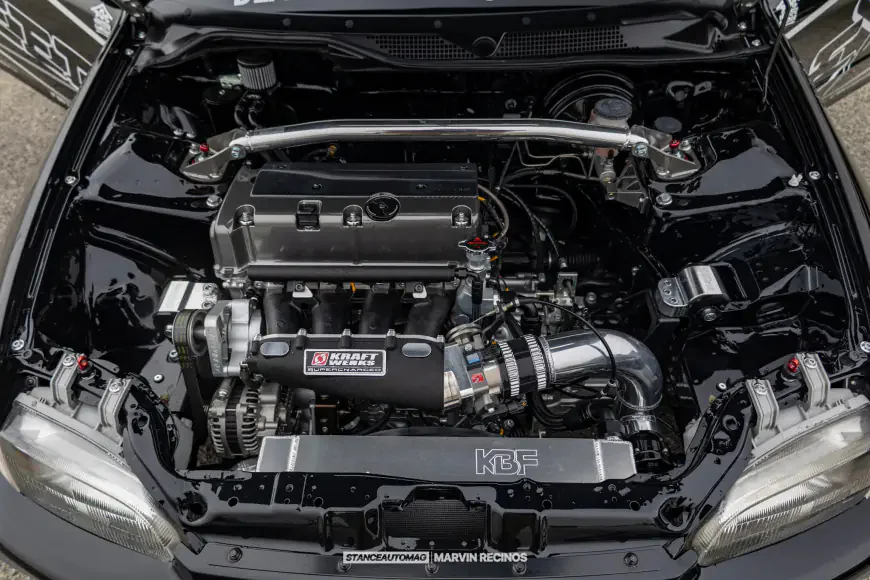

Honda K-Series Swaps

Why K-series engines are legendary:

• High-revving (8,000+ rpm)
• VTEC (that magical kick)
• Lightweight
• Excellent transmission
• 200-250bhp stock, 400+ with turbo

Popular K-swap chassis:

Honda Civic EK/EG:

• Cost: £4,000-8,000
• Result: 200-240bhp NA, 300-400+ turbo
• Best combo: K20A or K24A with K20 head

Mazda MX-5:

• Cost: £5,000-10,000
• Result: High-revving, balanced chassis
• Less common than LS but excellent

Mini Cooper:

• Cost: £6,000-12,000
• Result: Go-kart handling with VTEC power

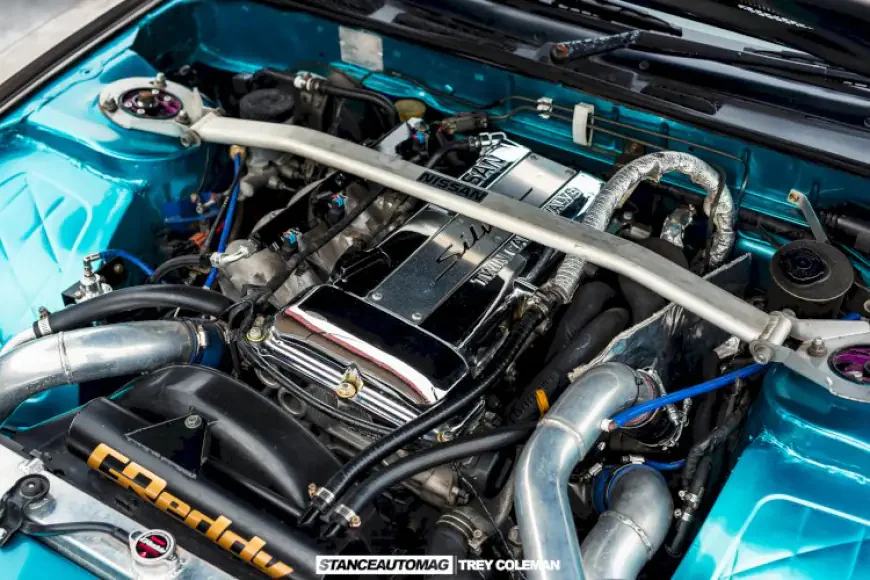

SR20DET Swaps (Nissan)

Why SR20DET:

• Proven turbo platform
• 200bhp stock, 300-400+ modified
• Bulletproof (with proper maintenance)
• Fits many chassis easily

Popular SR chassis:

Nissan 240SX (KA24 to SR20):

• Cost: £3,000-6,000
• Result: Proper JDM drivetrain
• Most common swap globally

BMW E30:

• Cost: £6,000-10,000
• Result: Unique combo, lightweight, turbo
• Less common but effective

For SR20 build details, see our complete SR20DET guide.

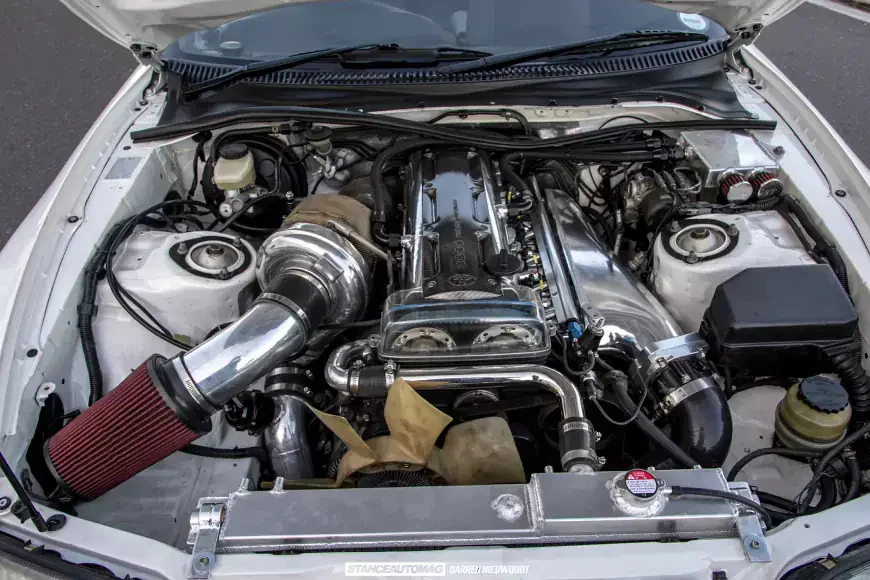

2JZ-GTE Swaps (Toyota Supra)

Why 2JZ:

• Legendary reliability
• 700-1,000+ bhp capable
• Cast iron block (bulletproof)
• Proven at extreme power

Popular 2JZ chassis:

Nissan S13/S14/S15:

• Cost: £8,000-15,000
• Result: Drift machine with Supra power
• Popular in pro drifting

BMW E36/E46:

• Cost: £10,000-18,000
• Result: Ultimate sleeper
• Complex but rewarding

Mazda RX-7:

• Cost: £8,000-14,000
• Result: Controversial (removing rotary)
• Massively reliable vs rotary

For 2JZ turbo selection, see our complete guide.

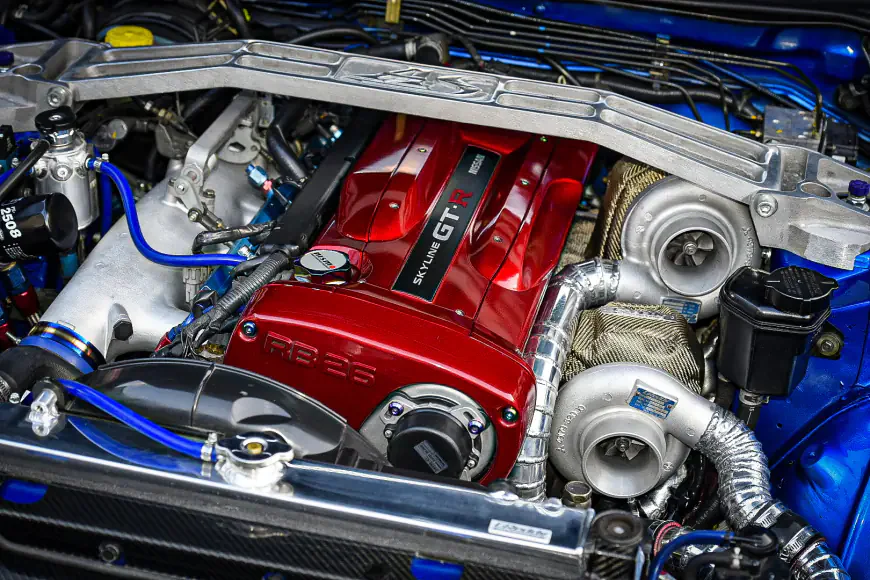

RB26DETT Swaps (Nissan Skyline)

Why RB26:

• GTR heritage
• 400-600bhp capable
• Sounds incredible
• JDM cred

Popular RB chassis:

Nissan S13/S14:

• Cost: £8,000-15,000
• Result: Baby GTR
• Relatively straightforward

Cost: RB swaps are expensive due to engine scarcity

Complete Cost Breakdown

Budget LS Swap (E36 Example)

K-Series Swap (EK Civic Example)

SR20DET Swap (240SX Example)

Legal Requirements (UK)

IVA (Individual Vehicle Approval)

Required if:

• Significant modification (engine swap qualifies)
• Changes vehicle class
• First registration after modification

Process:

• Submit application to DVSA
• Vehicle inspection
• Emissions testing
• Safety checks

Cost: £500-800 for IVA test Preparation cost: £1,000-3,000 (making car compliant)

Insurance

Must declare swap to insurance.

Most mainstream insurers refuse. Use specialists:

• Adrian Flux
• Greenlight
• Sky Insurance
• A-Plan

Expect: £1,200-2,500/year depending on engine and age

For insurance strategies, see our modified car insurance guide.

MOT Considerations

Emissions: Must pass for engine year, not chassis year Visual inspection: Check under bonnet Safety items: Must all function correctly

For MOT guidance, see our complete MOT guide.

Fabrication Requirements

Engine Mounts

Options:

• Bolt-in kit (easiest): £400-1,200
• Custom fabrication: £800-2,000

DIY difficulty: Intermediate to advanced

Transmission Tunnel

May need modification for:

• Larger transmissions
• Different bellhousing angles

Cost: £200-800 (fabrication)

Exhaust

Always custom for swaps.

Cost: £500-1,500 DIY: Possible with welding skills

Wiring

Most complex aspect.

Options:

• Plug-and-play harness: £800-1,500
• Custom harness: £500-1,200 (DIY)
• Professional: £1,500-3,000

Time: 40-100 hours

Common Problems

1. Budget Explosion

Planned: £8,000 Reality: £15,000

Why: Unexpected issues, better parts than planned, scope creep

Prevention: Budget 50% more than estimate

2. Parts Incompatibility

Problem: Parts don't fit as advertised

Solution: Research thoroughly, buy from reputable suppliers

3. Wiring Nightmares

Problem: Engine won't start, electrical gremlins

Solution: Professional wiring harness or very thorough DIY

4. Cooling Issues

Problem: Engine overheats

Solution: Upgrade radiator, proper coolant routing

5. Transmission Issues

Problem: Gearbox doesn't fit or fails

Solution: Match gearbox to engine torque rating

Timeline Expectations

DIY Full Swap

Planning/Parts gathering: 2-4 months Physical swap: 3-6 months (weekends) Troubleshooting: 1-3 months Total: 6-12 months realistically

Professional Shop

Parts gathering: 1-2 months Installation: 4-8 weeks Sorting/tuning: 2-4 weeks Total: 3-5 months

Should You Swap or Build the Stock Engine?

Swap Makes Sense When:

• Stock engine weak/unreliable
• Want completely different character
• Parts readily available for swap
• Fabrication skills available
• Budget realistic (£8k+ minimum)

Build Stock Engine When:

• Stock engine strong platform
• Parts readily available
• Less complexity desired
• Budget limited
• Want to maintain originality

For building stock engines to high power, see our EP3 300bhp guide.

Frequently Asked Questions

Q1: What's the cheapest engine swap?

K-series into Honda EK/EG. Parts widely available, relatively simple, £4-7k total.

Q2: What's the easiest swap for beginners?

Same manufacturer, similar generation. Example: SR20DET into 240SX, already designed for it.

Q3: Can I do an engine swap without welding skills?

Difficult. Most swaps require some fabrication. Partner with a welder or learn basic welding.

Q4: How much power can I make with an LS swap?

LS1/LS2: 350-450bhp stock With mods: 500-600bhp Built: 700-1,000+ bhp

Q5: Is the LS swap reliable?

Very. LS engines have truck heritage and are known for reliability. Properly installed, they're bulletproof.

Q6: Will the engine swap pass MOT?

Yes, if: emissions pass for engine year, all safety items work, properly installed.

Q7: How much does a professional swap cost?

£12,000-25,000 depending on engine, chassis, and shop. Labor alone: £4,000-10,000.
